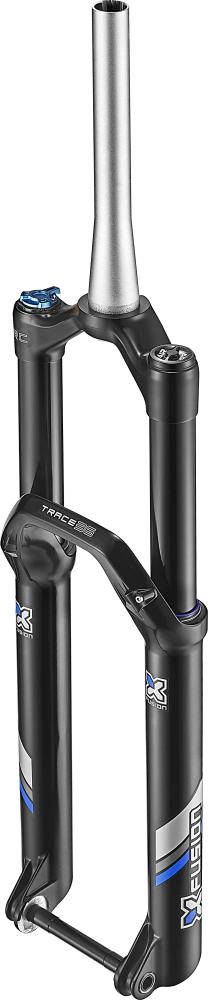

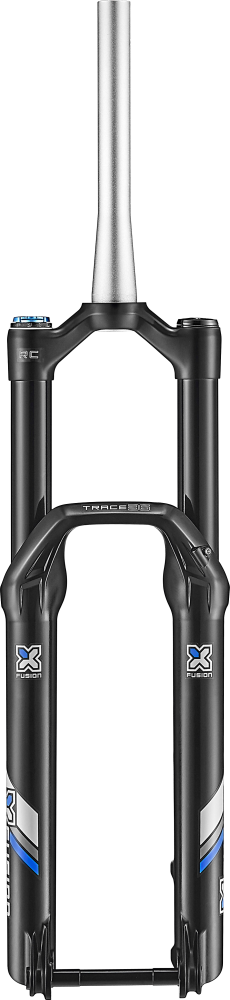

TRACE36 RC

FR/AM (29")
36MM
DETAIL

Developed for the new progression of 29er super enduro bikes with 170mm travel and 36mm stanchions, the Trace offers a stout chassis with smooth & efficient damping.The Trace36 available with the RC cartridge damping system.

FEATURES

  • The RC Damper is a fully cartridge based damper which features low speed, independently adjustable compression and rebound damping adjustment.
  • Nvolve Wiper seals reducing seal drag and increasing durability

SPECIFICATIONS

  • Wheel Size: 29 inch
  • Travel: 170mm (ITA 140/160/170)
  • Stanchion: 36mm Aluminum
  • Spring: Air
  • Damper: RC Cartridge
  • Adjustments : Low Speed Comp., Rebound,,Air Pressure
  • Steerer: Taper standard
  • Axle: Thru Axle 110*15mm Boost
  • Colors: Flat Black
  • Axle to Crown: 581mm @ 170mm of travel
  • Offset: 44/51mm
  • Rotor Size:180~ 203mm(XF adaptor only)
