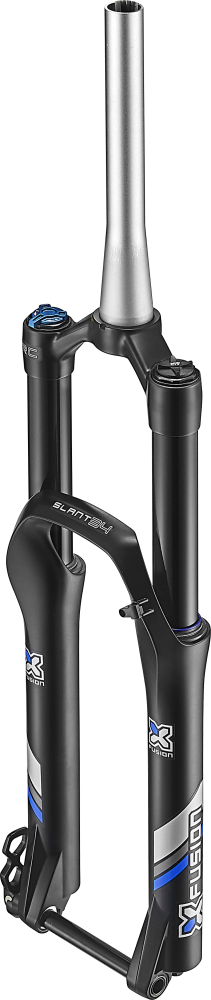

The Slant series was developed to bridge the gap between lightweight trail forks and high performance all-mountain forks. At XFusion we have taken note that not only suspension products have been progressing over the last few years, but the rider has as well. You all are fitter, faster, stronger and are looking for a product to match. The 34mm stanchion tube chassis provides the perfect balance between weight and strength in the trail and all-mountain category.
FEATURES
- The RC Damper is a fully cartridge based damper which features low speed, independently adjustable compression and rebound damping adjustment.
- Nvolve Wiper seals reducing seal drag and increasing durability
SPECIFICATIONS
- Weight: 4.2lbs/1905 grams
- Wheel Size: 26”
- Travel: 160mm (ITA 100/120/140/160mm)
- Stanchion: 34mm Aluminum
- Spring: Air
- Damper: RC Cartridge
- Adjustments : Low Speed Comp., Rebound,,Air Pressure
- Steerer: Tapered only
- Axle: LockX 100*15mm
- Color: Flat Black
- Axle to Crown: 545mm @ 160mm
- Offset: 40mm
- Max Rotor Size:180mm/203mm (XF adaptor only)
