H3C HLR

DH
(METRIC/TRUNNION ONLY)
DETAIL

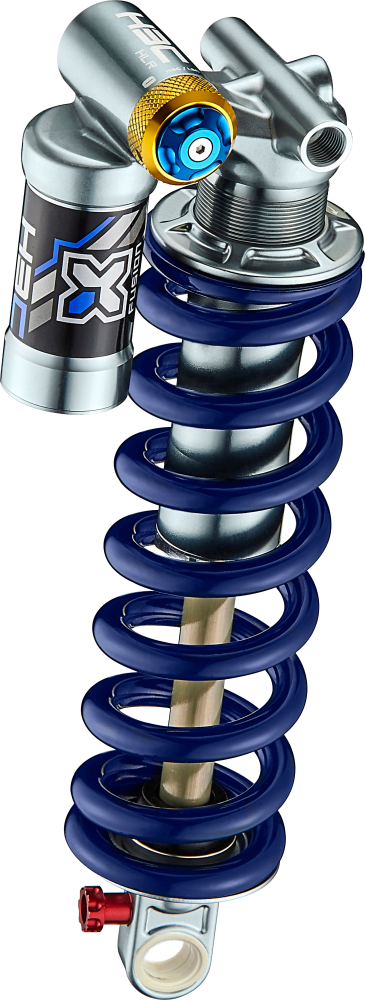

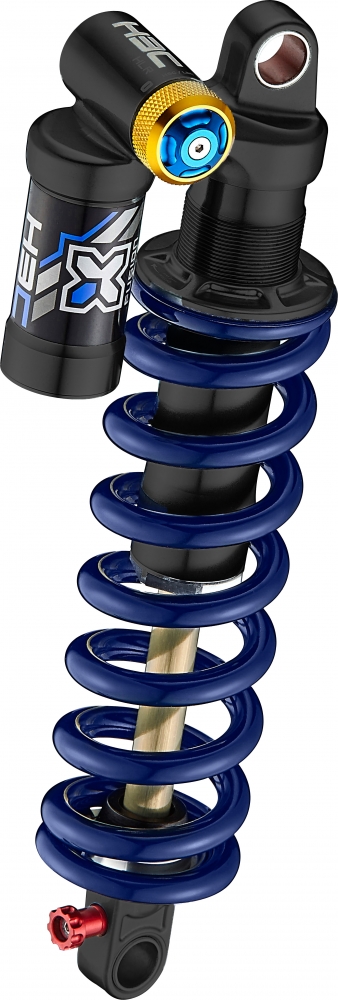

The H3C HLR is lightweight coil shock aimed for downhill riding. With high/low speed compression and rebound adjustment,
this shock is ready to take what you can throw its way!

FEATURES

  • Metric & Trunnion Mount
  • High/Low Speed Compression Adjustment
  • Lightweight Proprietary Metallurgy Spring

SPECIFICATIONS

  • Length: 250/75, 225/75mm
  • Weight: 720 grams with spring
  • Spring: Light Weight Coil(35mm ID)
  • Adjustments: Rebound, High/Low Speed Compression
  • IGUS DU bushing

DOWNLOAD

WARNING

  • Some strut-mount" or "yoke-equipped" not allow to use H3C or Vector Coil rear shock
  • DO NOT exceed the shock stroke or strut lengths(listed in the table below).

    Shock Stroke    Max Strut Length
    40mm-45mm      118mm
    50mm-55mm      98mm
    60mm-65mm      72mm
    70mm-75mm      37mm

    *Strut length is the distance between the axis of pivot and the axis of the shock mount
